KATRADIS Bow Shackle Stainless Steel
€3.60 – €29.35Price range: €3.60 through €29.35
KATRADIS Stainless Steel Bow Shackle is a premium marine connector designed for safe and reliable load distribution in a wide range of boating and rigging applications.
Manufactured from high-quality marine-grade stainless steel, it provides excellent corrosion resistance, exceptional durability, and dependable performance in both freshwater and saltwater environments. Its rounded bow design allows for multiple connections and greater flexibility, making it an essential piece of hardware for every yacht, sailboat, and motorboat.
KATRADIS Stainless Steel Bow Shackle – Reliable Marine Hardware for Secure Connections
The KATRADIS Stainless Steel Bow Shackle is engineered to provide maximum strength and versatility for marine rigging, anchoring, mooring, and lifting applications. Its wide, rounded bow offers a larger internal working area than a standard D shackle, making it ideal for connecting multiple lines, chains, straps, or fittings without placing unnecessary stress on the connection.
Manufactured from premium marine-grade stainless steel, this bow shackle is built to withstand the harsh conditions of the marine environment. It offers outstanding resistance to corrosion, rust, UV exposure, and constant contact with seawater, ensuring long-lasting performance and an attractive polished finish season after season.

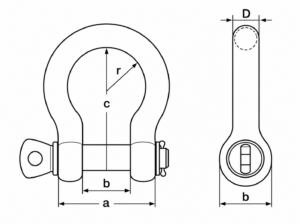

Dimensions:

| Nominal Size (D) | Weight (kg) | a (mm) | b (mm) | c (mm) | r (mm) | Safe Working Load (kg) |
|---|---|---|---|---|---|---|
| 8 mm | 0,07 | 16 | 18 | 32 | 12 | 200 |
| 10 mm | 0,13 | 19 | 20 | 38 | 16 | 320 |
| 12 mm | 0,24 | 25 | 26 | 51 | 19 | 520 |
| 16 mm | 0,50 | 32 | 33 | 64 | 28 | 800 |
| 20 mm | 0,80 | 38 | 40 | 76 | 33 | 1,100 |
| 22 mm | 1,30 | 44 | 50 | 89 | 37 | 1,500 |
| 24 mm | 2,00 | 51 | 57 | 100 | 40 | 2,100 |
| 30 mm | 3,00 | 57 | 68 | 115 | 47 | 3,000 |
Typical Applications
The KATRADIS Stainless Steel Bow Shackle is ideal for:
- Sailboat rigging
- Yacht deck hardware
- Motorboat fittings
- Anchor systems
- Mooring lines
- Anchor chain connections
- Dock lines
- Fender attachments
- Snubber systems
- Blocks and pulleys
- Wire rope assemblies
- Lifting equipment
- Marine construction
- Commercial fishing equipment
- General marine fastening applications
