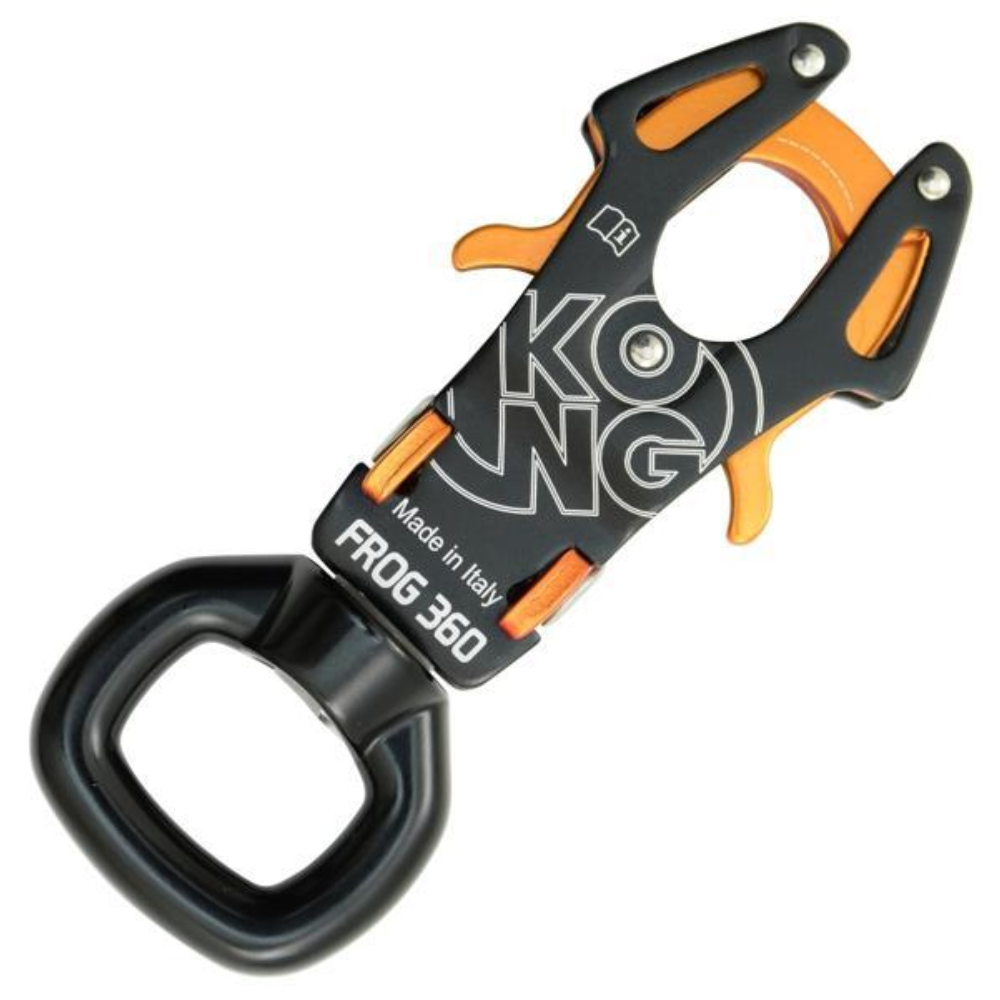

Kong Frog 360 Directional Connector with Swivel, Black/Orange

The Kong Frog 360 is a professional directional connector designed for applications where quick connection, controlled load direction and freedom of rotation are important.

Its innovative automatic closing gates open simultaneously and lock in the open position. When the connector is inserted into a suitable anchorage and the inner section makes contact, the gates close automatically, providing a fast and secure connection.

The integrated swivel is specifically shaped to be textile-friendly, allowing compatible ropes, webbing or textile elements to connect directly to the swivel eye. This rotating design helps prevent unwanted twisting of connected lanyards and equipment.

Manufactured in Italy from aluminium alloy, with stainless-steel pins, the Frog 360 combines low weight with a rated major-axis strength of 23 kN.

It is certified according to EN 362:2004 Class A/T, EN 12275:2013 Class A and UIAA 121.

Key Features

• Directional connector with integrated 360° swivel
• Kong FROG automatic gate system
• Fast automatic closing when correctly connected
• Textile-friendly swivel eye
• Allows direct connection to compatible textile elements
• Helps create no-twist lanyard systems
• Aluminium alloy body, gates and swivel
• Stainless-steel pins
• Rated strength: 23 kN
• Compact professional design
• Suitable for compatible professional, rope-access and sailing applications
• Colour: Black / Orange
• Made in Italy

Technical Details

• Product: Kong Frog 360
• Item Code: 7040XNNONKK
• Colour: Black / Orange
• Material: Aluminium alloy
• Pins: Stainless steel
• Strength: 23 kN
• Weight: Approx. 135 g
• Length: Approx. 130 mm
• Maximum Width: Approx. 65 mm
• Swivel Eye Opening: Approx. 26 mm
• Maximum Compatible Anchorage Size: Less than 13 mm
• Shape: Special
• Gate System: Automatic directional gates
• Connection: Textile-friendly swivel eye
• Standards: EN 362:2004 A/T, EN 12275:2013 A, UIAA 121

Important: The Frog 360 is a directional safety connector and must be loaded only in the correct direction. Kong states that the actual working load must not exceed one quarter of the rated load (WLL 1:4). The connector must never be loaded along its minor axis, opened while under load, or used with textile elements positioned inside the gates. Always follow Kong’s official instructions before use.
