High-Load MXEvo Friction Block

The Wichard MXEvo combines impressive load capacity with compact dimensions and optimized weight.

Its specially designed rope track and guiding fins help keep the line correctly positioned while reducing unnecessary rope wear.

The MXEvo also incorporates a becket function, allowing it to be used when creating purchase systems.

Ideal for:

• Mast-foot blocks
• Running backstays
• High-load running rigging
• Purchase systems
• Yacht and racing sailboat rigging
• Applications requiring compact, high-strength deck hardware

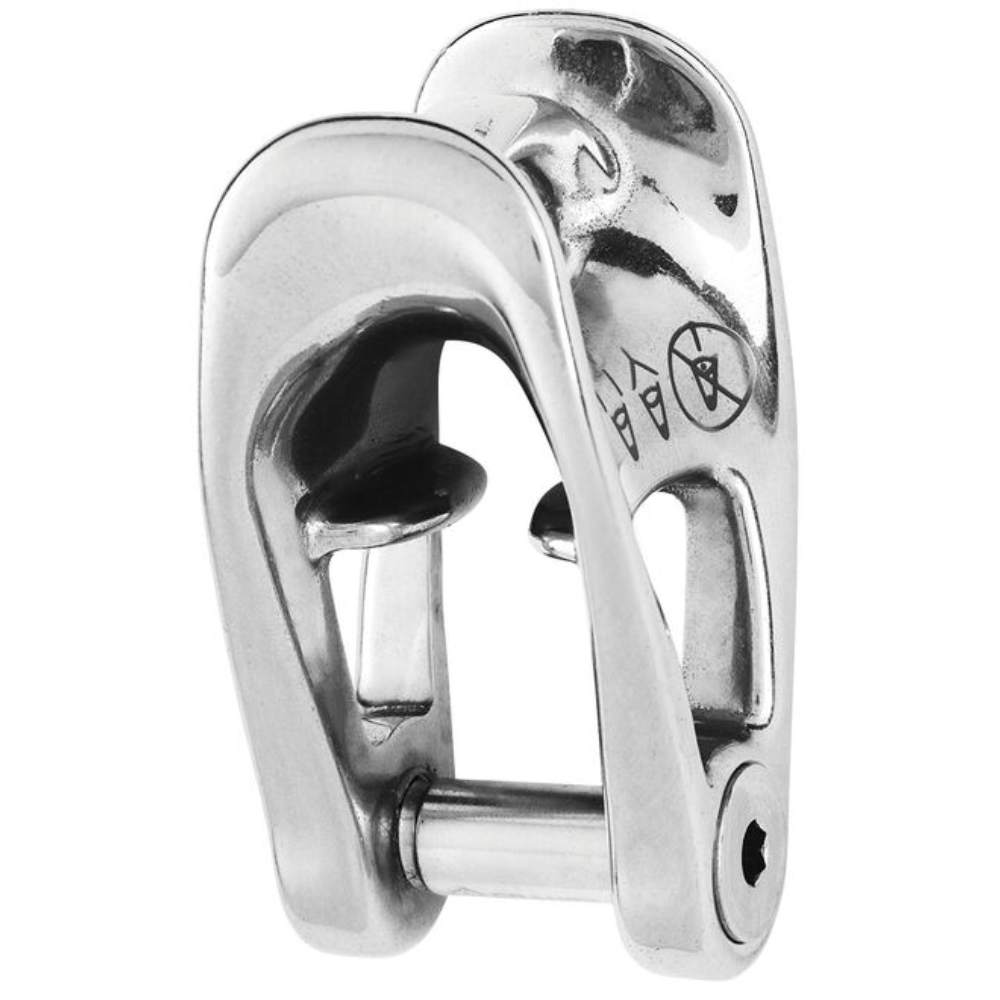

Allen Head Pin with Retaining Leash

The Allen head pin provides a secure connection while allowing straightforward installation of the rope.

A retaining leash keeps the pin attached to the MXEvo during opening and closing, reducing the risk of losing the pin during installation or maintenance.

The pin is forged from high-resistance Duplex stainless steel, while Wichard specifies 316L stainless steel for the MXEvo construction

Technical Dimensions

8 mm Version

Wichard Reference: 11614
Diameter: 8 mm
Maximum Rope Diameter: 10 mm
Length: 62 mm
Width: 36 mm
A: 18 mm
B: 18 mm
C: 9 mm
Working Load: 1,300 kg
Breaking Load: 3,500 kg
Weight: 100 g

10 mm Version

Wichard Reference: 11615
Diameter: 10 mm
Maximum Rope Diameter: 14 mm
Length: 77 mm
Width: 44 mm
A: 22 mm
B: 22 mm
C: 11 mm
Working Load: 1,760 kg
Breaking Load: 5,000 kg
Weight: 204 g

Main Advantages

• Designed for heavy-load sailing applications
• High working and breaking loads
• Compact dimensions and optimized weight
• Allen head pin for secure installation
• Retaining leash helps prevent pin loss
• High-resistance Duplex stainless steel pin
• 316L stainless steel construction
• Integrated becket function
• Guiding fins help keep the rope on track
• Track design helps reduce rope wear
• One-piece construction for improved reliability
• Suitable for ropes up to 10 mm or 14 mm, depending on size
