Scanstut

619.01

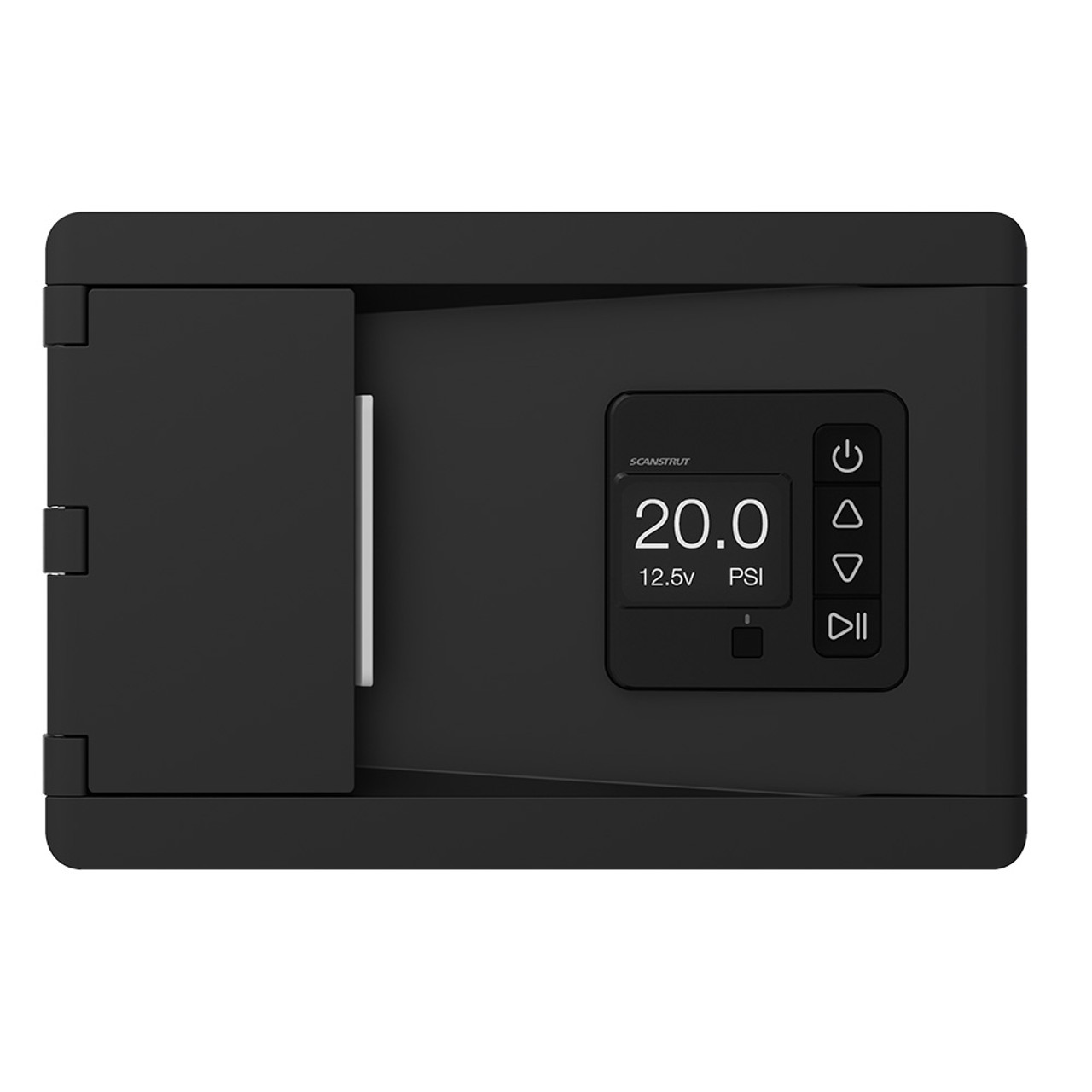

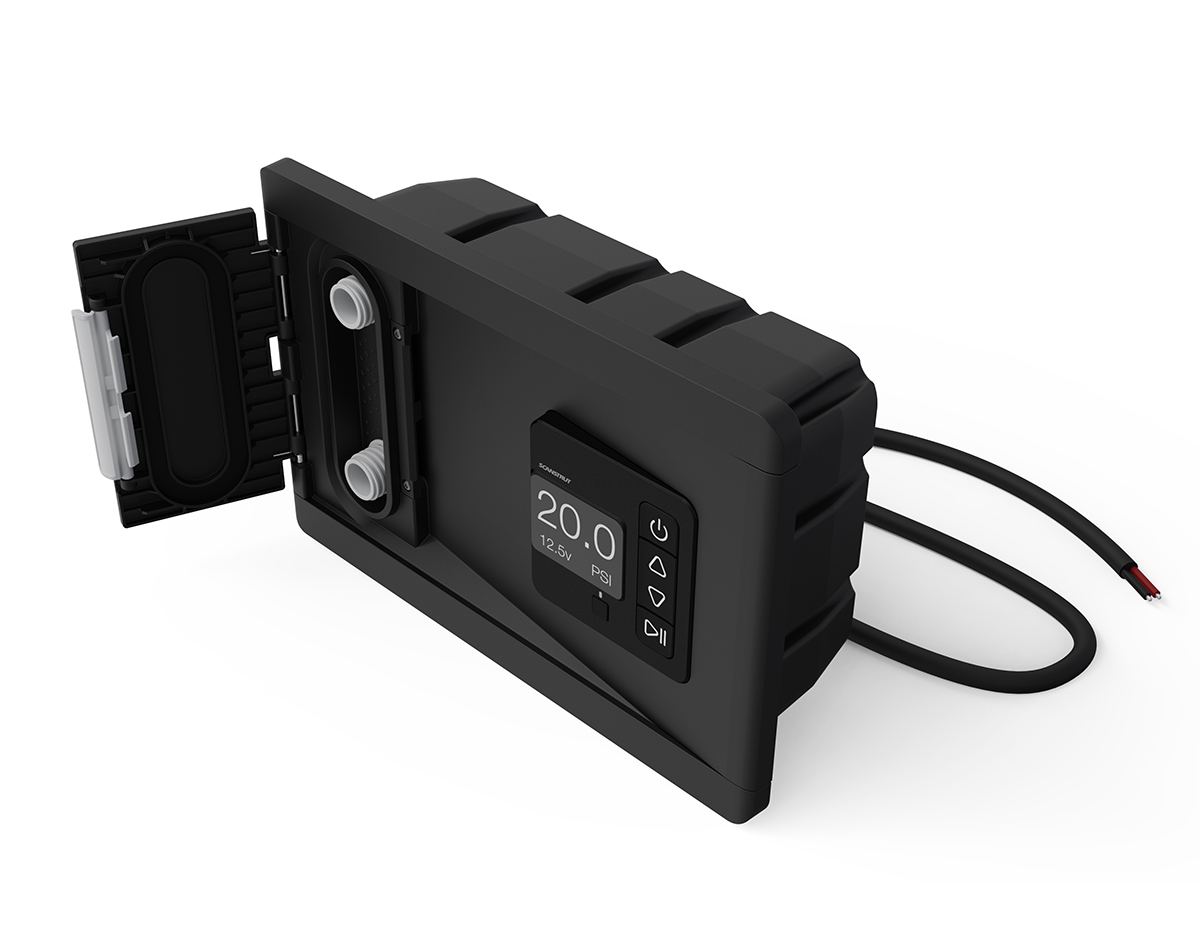

ATMOS by Scanstrut will revolutionise your family’s boating experience on your yacht. This beautifully designed, in-built air station maximizes quality time on the water. With the push of a button, ATMOS inflates your paddleboards, towables, and more: simply set the target pressure and let ATMOS do the hard work.

In Stock

SKU: XYCE00013561 Category:
Description

ATMOS by Scanstrut will revolutionise your family’s boating experience on your yacht. This beautifully designed, in-built air station maximizes quality time on the water. With the push of a button, ATMOS inflates your paddleboards, towables, and more: simply set the target pressure and let ATMOS do the hard work.

Features:

  • Waterproof: IPX6 front and back
  • Input Voltage: 12V (10-14V)
  • Max Pressure: 20 PSI / 1.37 BAR
  • Two-Stage Pump: Stage 1 = 0-1 PSI, Stage 2 = 1.1-20 PSI
  • Max Current Draw: 12A (140W)
  • Standby Current: 0.02W Max

Technical Specifications:

  • Max Airflow: 0-1 PSI: 350 LPM / 12.3 CFM, 1-20 PSI: 70 LPM / 2.5 CFM
  • Operating Temperature: -20º to +50º C
  • Certifications: CE, ROHS, UN ECE R10, UKCA
  • Protections: Reverse polarity, short-circuit, under voltage, overload, over temp

Installation:

  • How: Panel mounted using self-tapping screws or bolts (not included), foam gasket included.
  • Angle: +10º to -30º from vertical
  • Cavity Depth: Minimum 110mm (4.33”)
  • Ignition Protection: ISO 8846 and SAE J1171

Usage:

  • Inflate/Deflate Times:
    • Towables: Inflate 1.5 PSI in ~3 mins, Deflate in ~1 min
    • 10ft SUP: Inflate 20 PSI in 6-8 mins, Deflate in ~1 min
    • 4M Platform: Inflate 5 PSI in ~16 mins, Deflate in ~1 min

Includes:

  • Heavy-duty sun cover
  • 2.5M (8ft) hose
  • 6 hose attachments (Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, 805 Valve)

Benefits: Enjoy the convenience and ease of inflating your water toys with ATMOS. Reliable and safe for all your boating needs.
