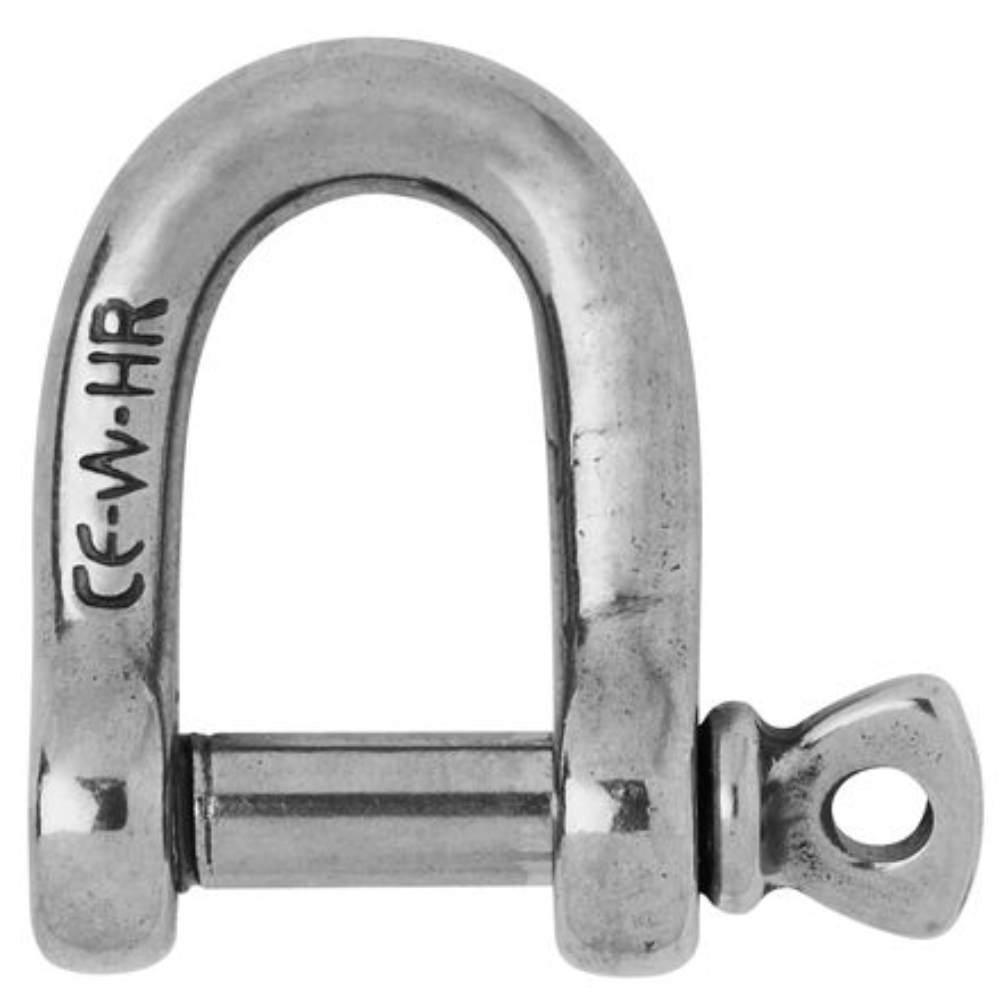

Wichard HR D Shackle High Resistance, 16mm

The Wichard HR D Shackle 16mm is a heavy-duty stainless steel shackle designed for high-load sailing and marine applications.

Made from forged HR 17-4 PH stainless steel, it offers exceptional strength in a compact design.

With a 6,800kg nautical Working Load and 19,000kg Breaking Load, it is ideal for demanding yacht rigging, sailing equipment and high-load connections.

Despite its impressive strength, it weighs only 464g.

Technical Specifications

• Brand: Wichard
• Product Code: 11208
• Type: HR D Shackle
• Material: HR 17-4 PH Stainless Steel (AISI 630)
• Construction: Forged
• Diameter: 16mm
• Pin Diameter: 16mm
• Working Load (Nautical): 6,800kg
• Working Load Limit (Industrial): 3,800kg
• Breaking Load: 19,000kg
• Weight: 464g

Important Information

The 6,800kg Working Load applies to nautical applications, while the 3,800kg Working Load Limit applies to industrial applications.

The 19,000kg Breaking Load is not the permitted load for normal use.

Always choose the correct shackle according to the required load, connection dimensions and direction of loading.

Ensure the pin is correctly secured before use.
